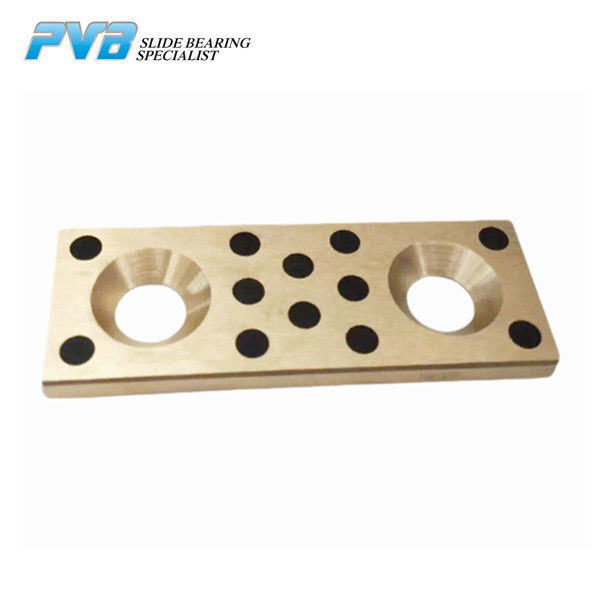

5mm Graphite Plugged Bronze Wear Plate Oilless Bronze Wear Plates

Large Image : 5mm Graphite Plugged Bronze Wear Plate Oilless Bronze Wear Plates

Product Details:

Brand Name:	PVB
Model Number:	JUTW

Contact Now

5mm Graphite Plugged Bronze Wear Plate Oilless Bronze Wear Plates

Description

Description:	Bronze Graphite Wear Plates	Material:	CuZn25Al6Fe3Mn3+Graphite
Thickness:	5mm	Lubrication:	Graphite Lubricated,maintentance-free
Advantages:	Self Lubrication, Long Service Life	Application:	Mould Industry
Highlight:	5mm Graphite Plugged Bronze Wear Plate , Graphite Plugged Bronze Wear Plate Oilless , Oilless Lamina Bronze Wear Plates

JUTW Thin Type 5mm Bronze Graphite Oilless Wear Plate

JUTW Oiles wear plates is made of bronze base material with graphite inlaid. This type of bronze graphite plates is also called oiles 500SP wear plates, oiless bronze graphite plates,Oilless guide elements

Material Structure

Standard material: CuZn25A16Fe3Mn3 + Graphite

Other customized material can be made based on customer’s requirement

Characteristics

Have Incomparable performance under a high load, low speed operation. Also perform well without lubrication
Excellent wear resistance in such places where an oil film is difficult to be formed due to reciprocating, oscillating motions and frequently intermittent operations
Remarkable resistance to corrosion and resistance to chemical attack
Maintenance free and save operating cost

Application

JUTW oiles bronze graphite wear plates is widely used for mould industry, hydraulic machine and etc.

Standard Size Table Download

5mm Graphite Plugged Bronze Wear Plate Oilless Bronze Wear Plates 0

JUTW Bronze Graphite Oiles Wear Plate.pdf
